EPZ TP35 Pro

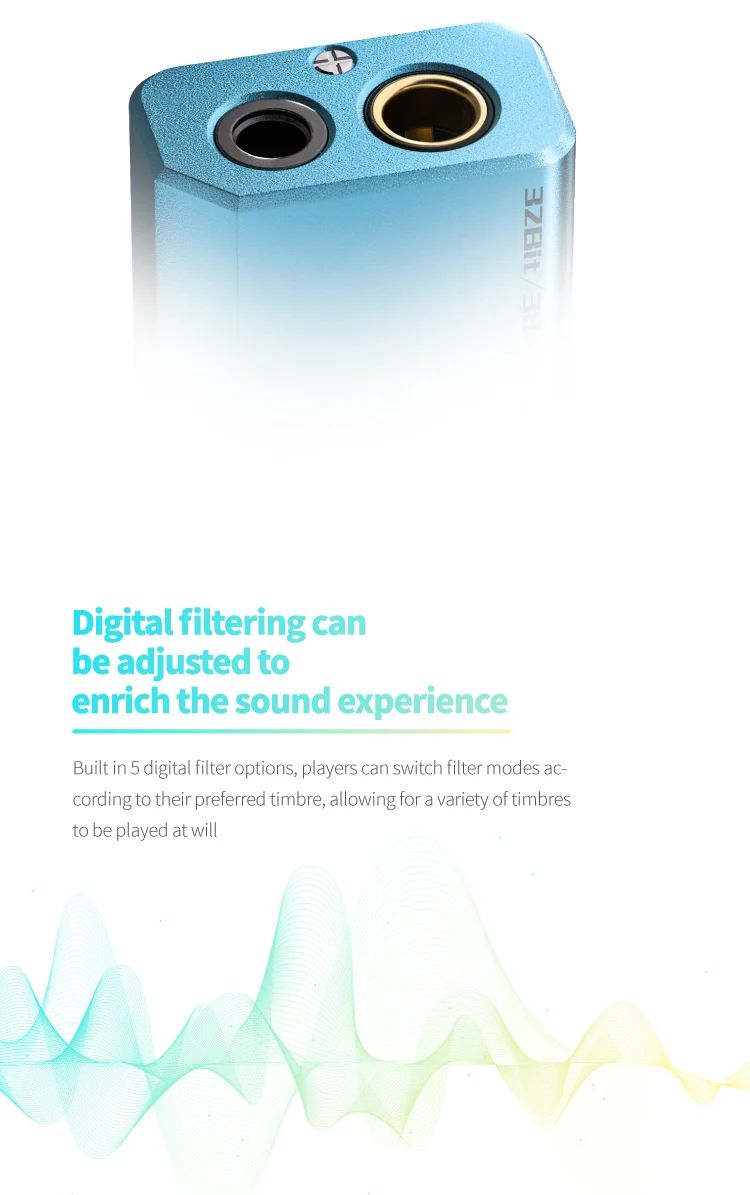

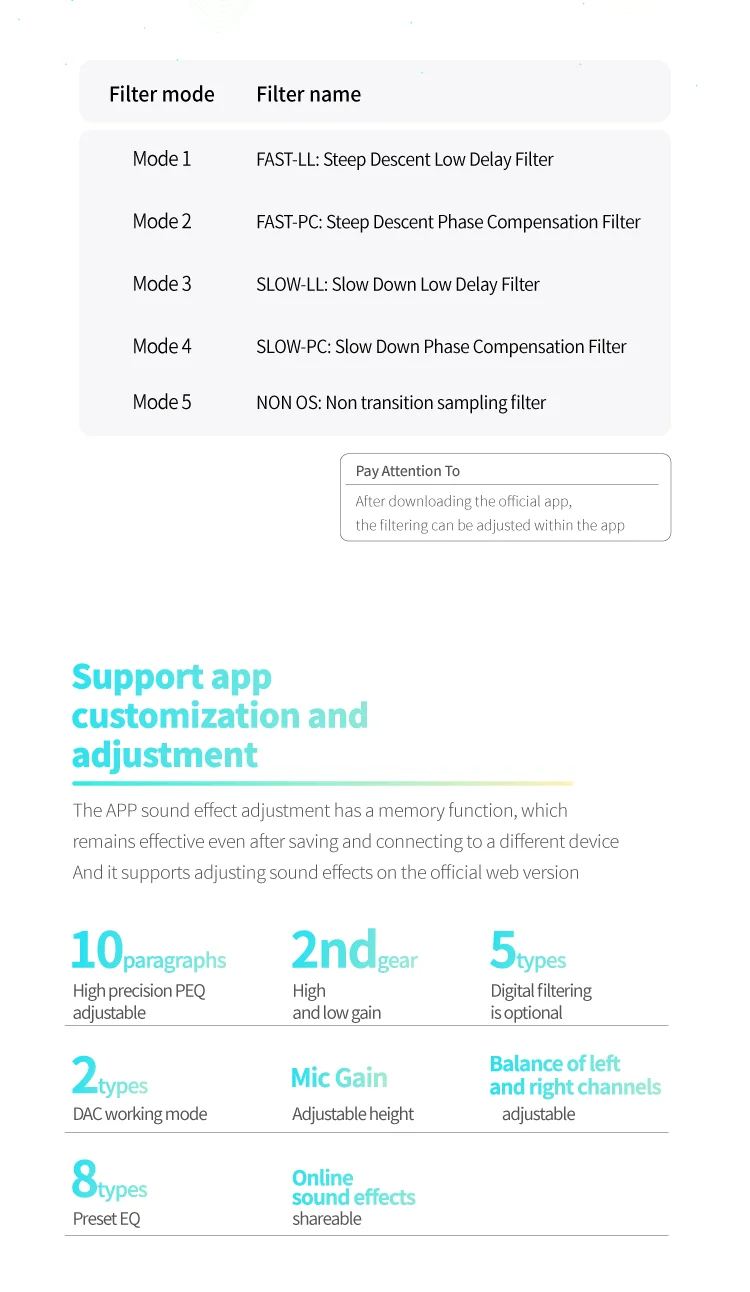

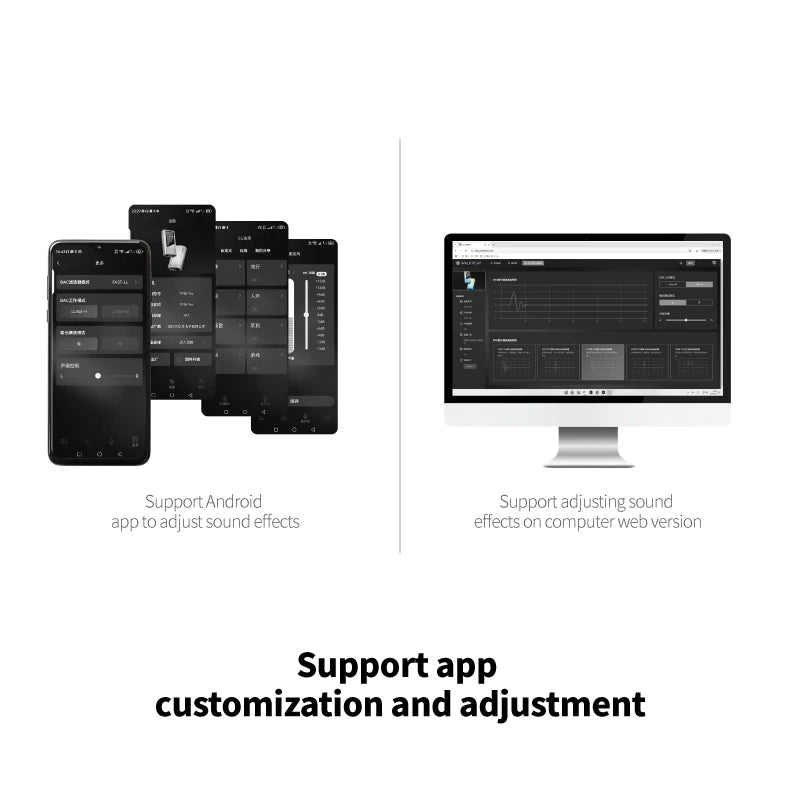

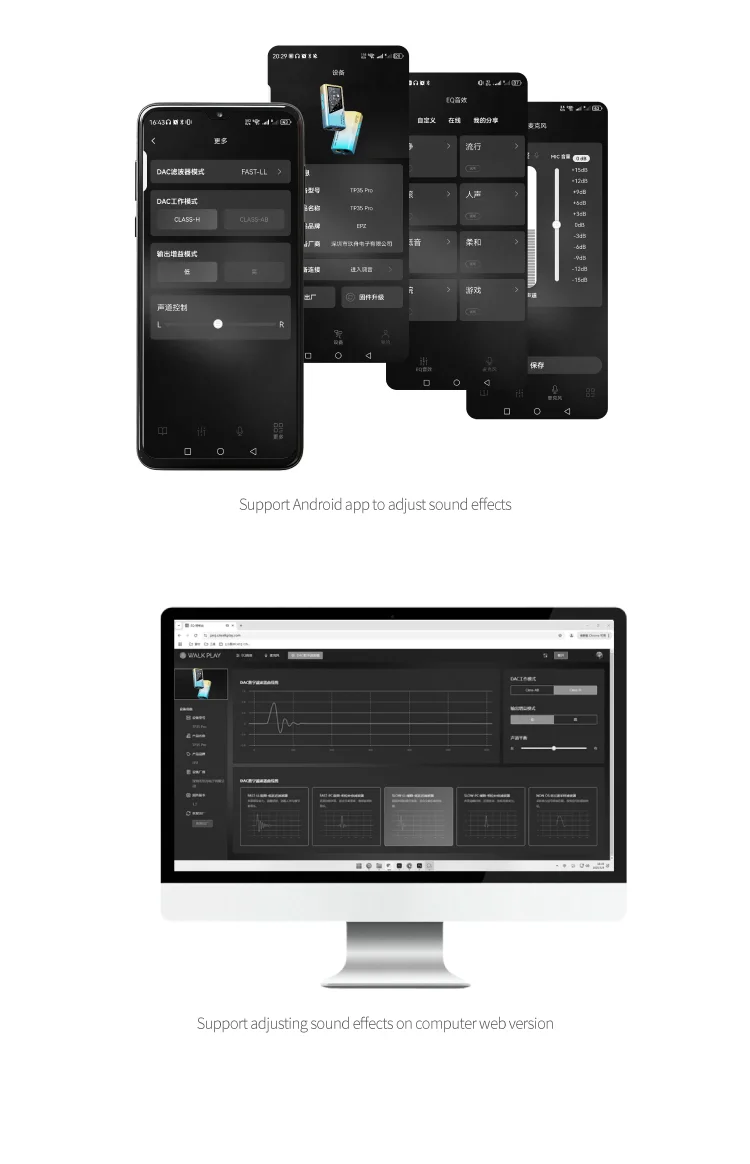

Software walkplay Android download can adjust your favorite EQ and filter, sound gain

You can use the software to adjust

Online version on PC(Note: The platform restricts the insertion of URLs, and there is also a walk play for Android phones to download. If you have purchased, you can consult the software download and URL at any time, and we will reply to you, thank you)

(the key point is that it can also remember, that is, after you adjust it, use it on other Android phones, it will remember your previously adjusted EQ for listening)

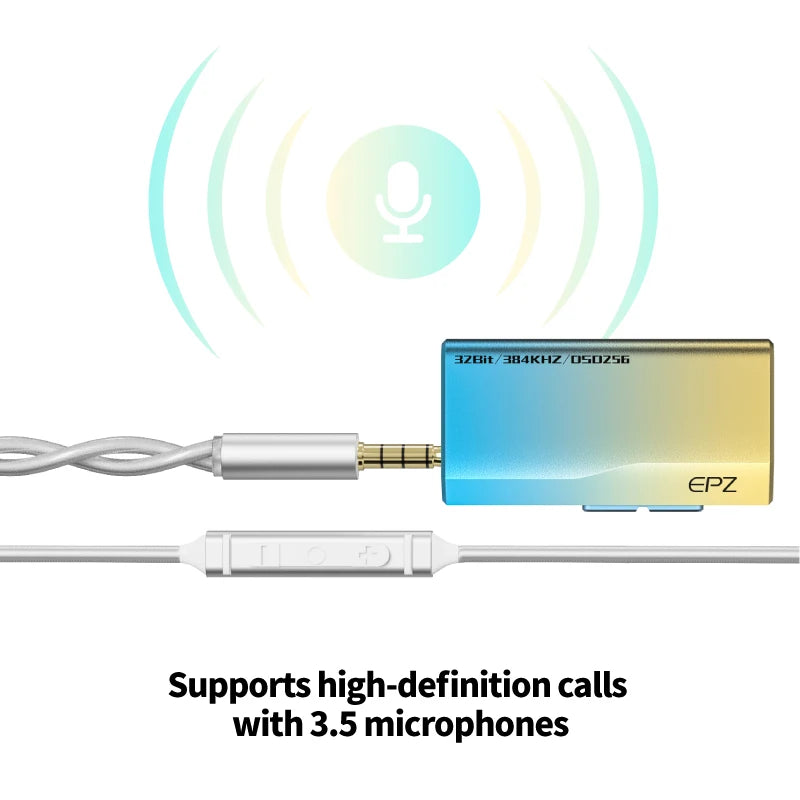

2: Added 3.5mm jack to support wired headset microphone calls, so that you can listen to songs and answer calls at any time

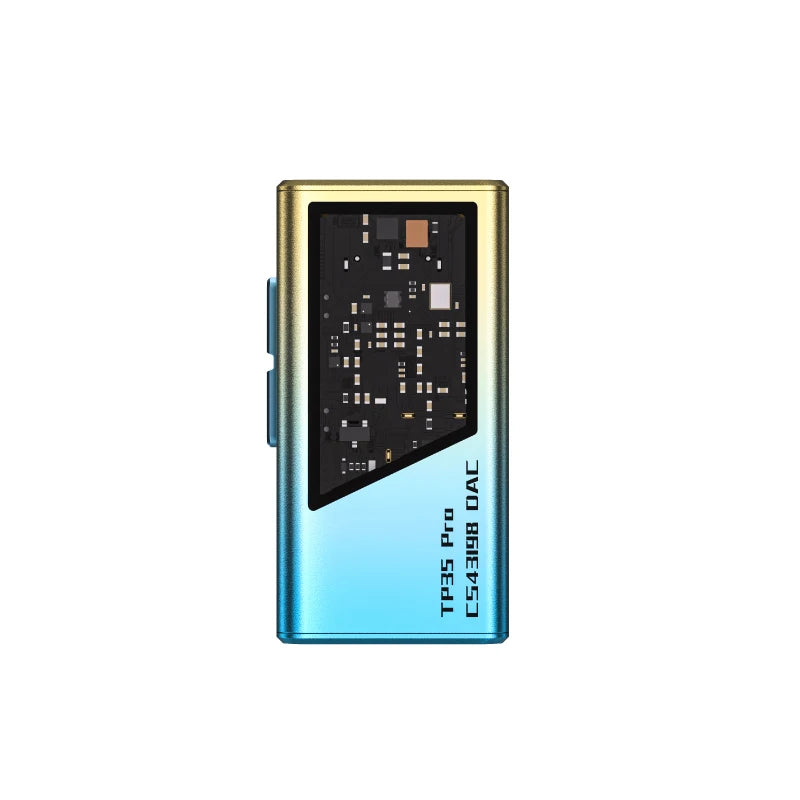

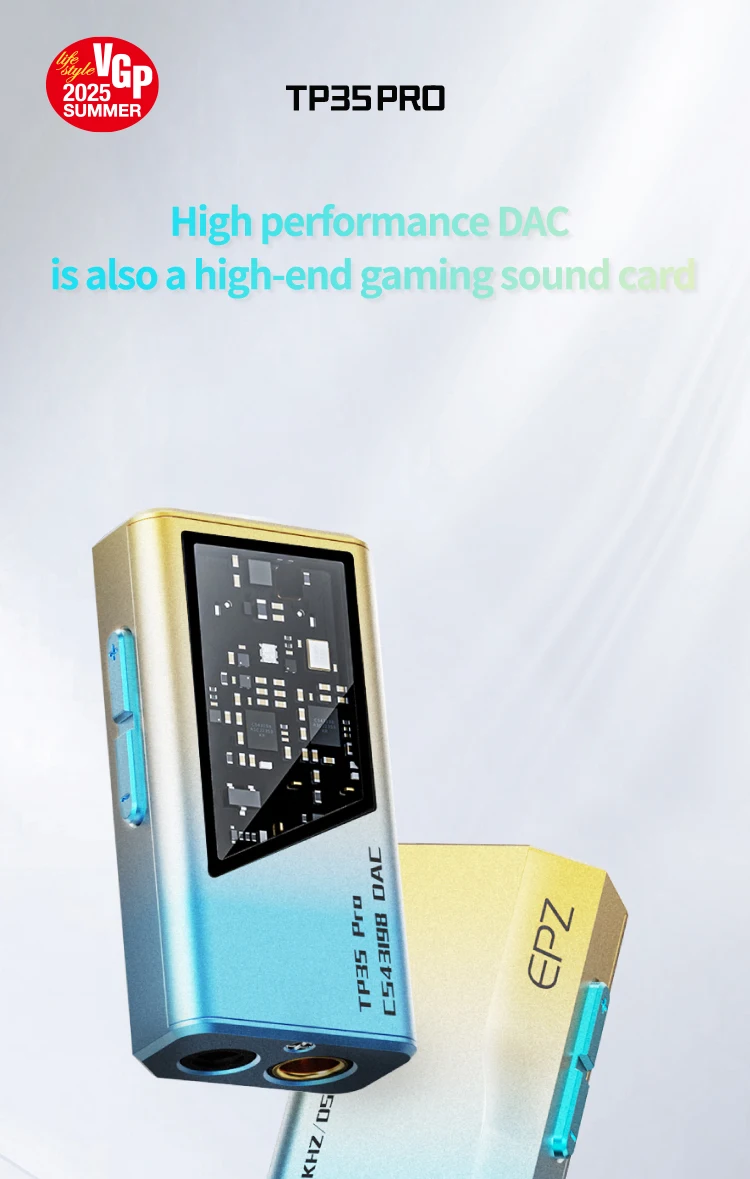

3: A new color has been added: Sunset Sea（Gradient Color）

The Appearance is like the sunset you see on the edge of the ocean, making your DAC more eye-catching and exquisite

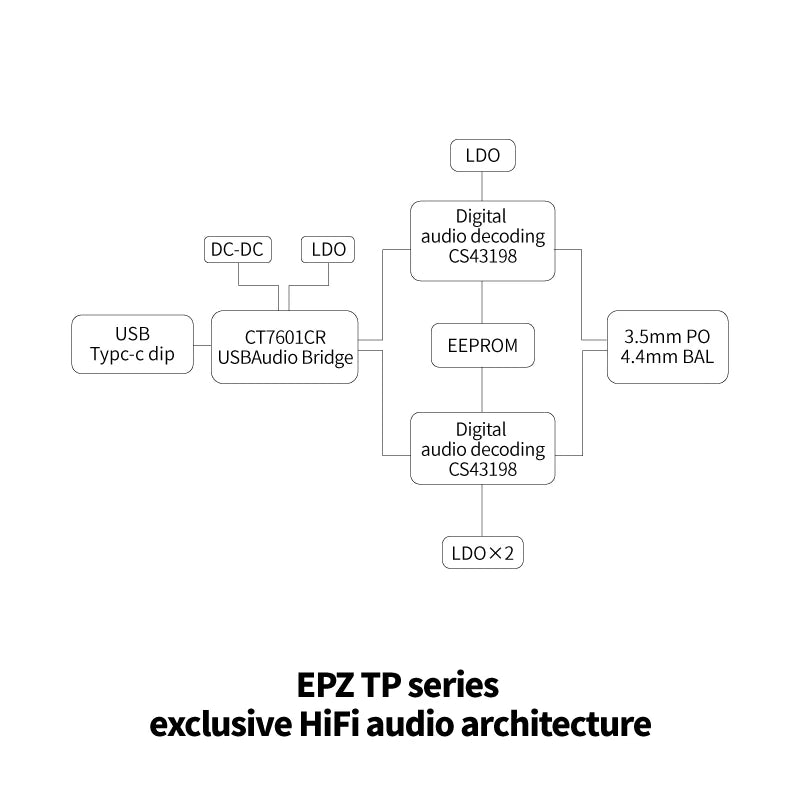

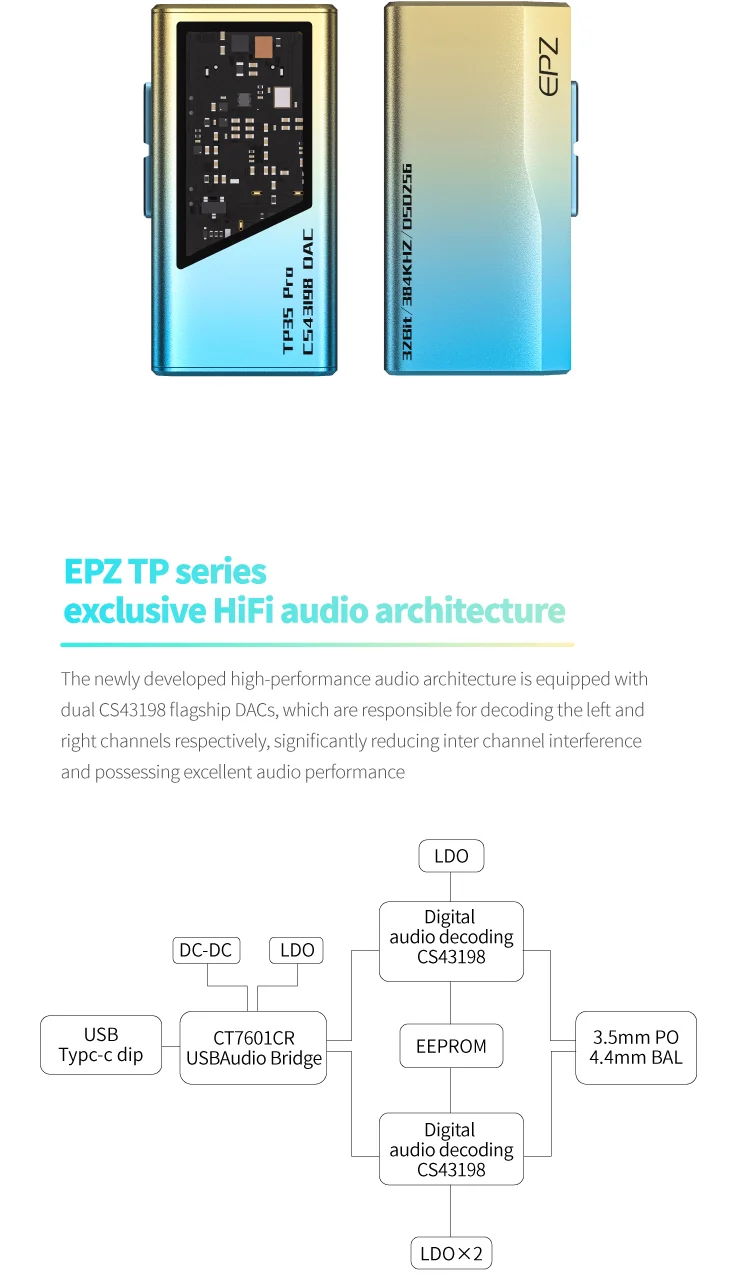

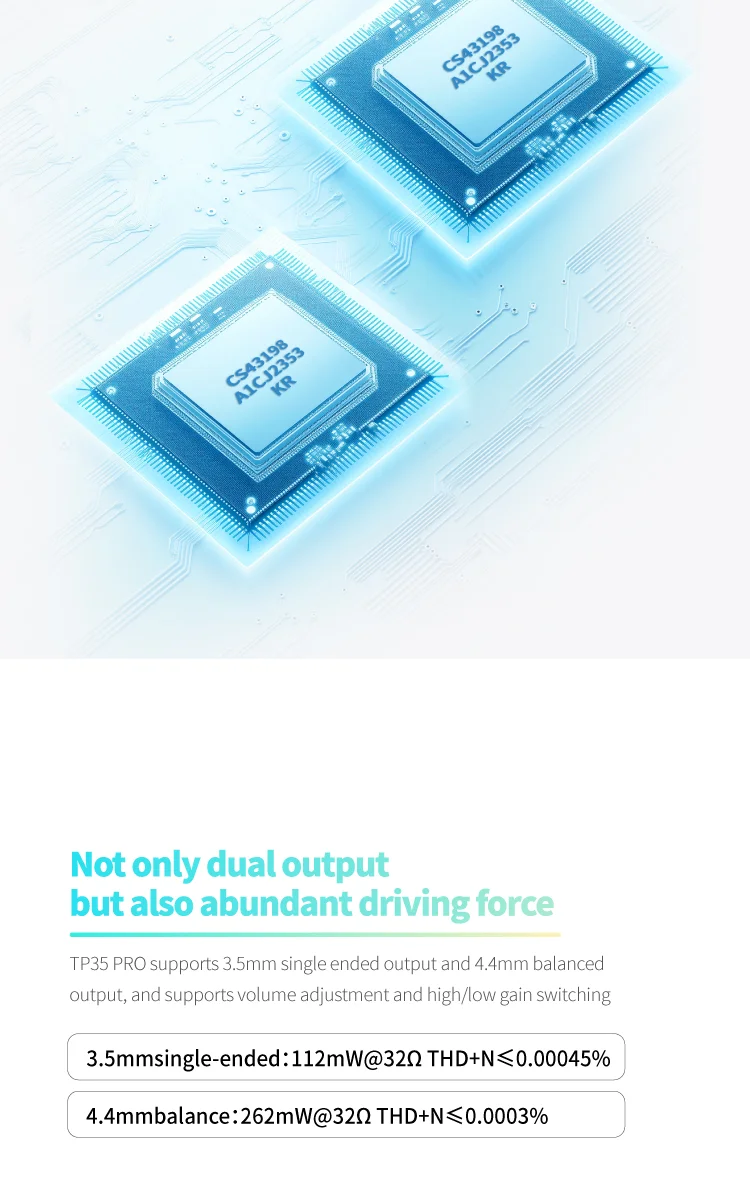

C43198x2 DAC chip neutral and versatile audio quality:

The expressiveness and realism released in the music are reproduced again. It supports 384kHz/32Bit PCM and DSD 256 high-definition audio, and various sound sources are easily decoded. The attached peripheral filter circuit can suppress interference and power supply noise, and more perfect and stable experience of pure audio signals

Tone clarity and low-noise production design:

With a signal-to-noise ratio of 130dB, the device achieves a very low noise level. The distortion rate is only 0.0005% (THD+N). The design ensures that the sound is presented in scenes like mountains and rivers without any noise (1μVrms).

Body construction and aesthetic matching:

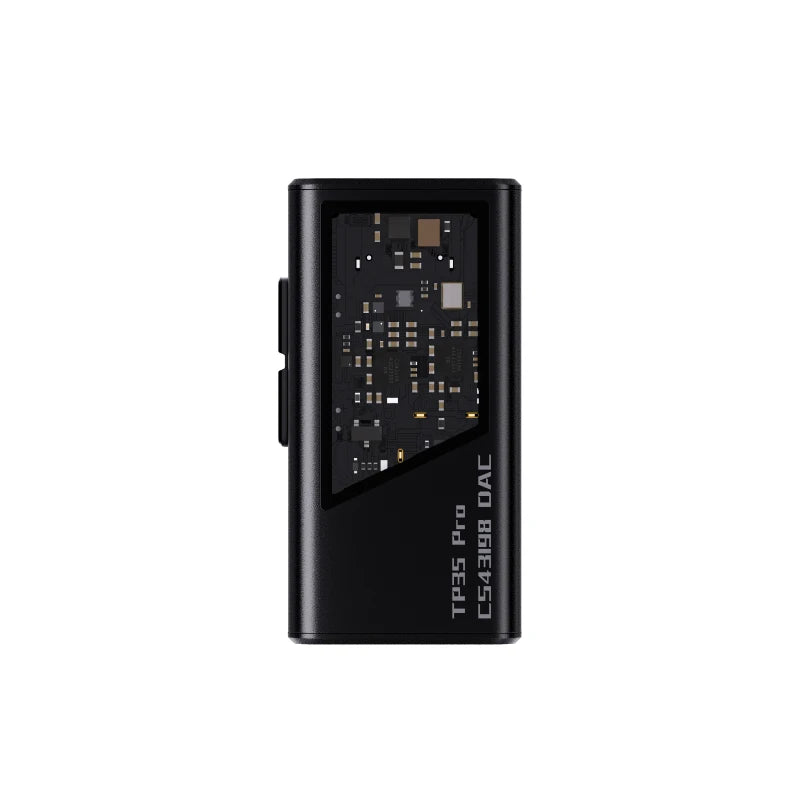

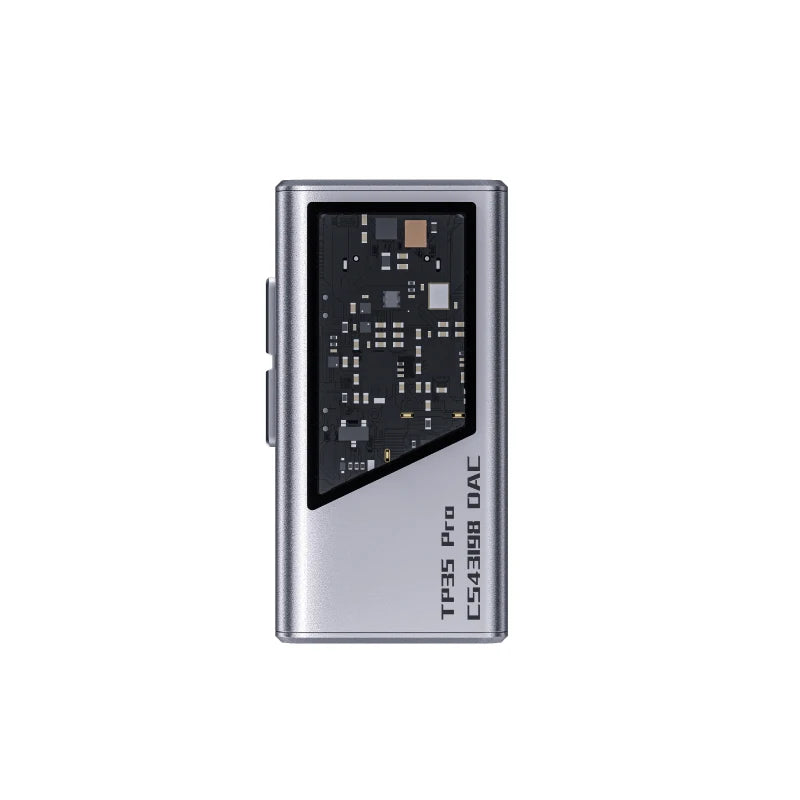

TP35 is made of CNC aluminum alloy, precision-processed, compact and portable, and has a distinctive appearance. The surface is sandblasted and oxidized, which can make it laser-engraved, and can present the effect of texture and texture. The transparent acrylic is matched (let you see the real chip inside) and weighs 15G, which makes you portable and easy. Functional form


High-quality functional connection:

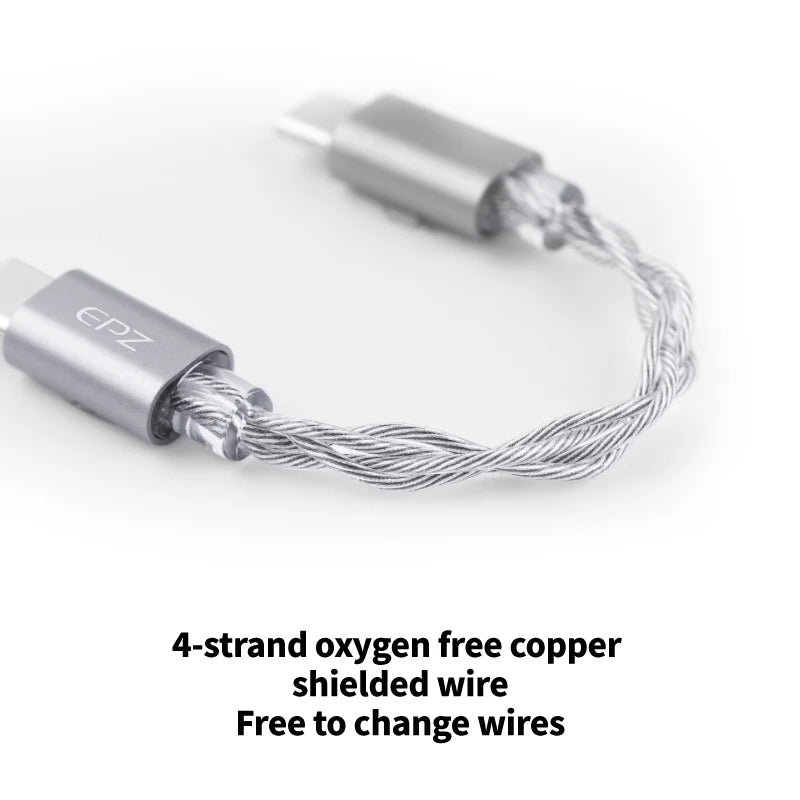

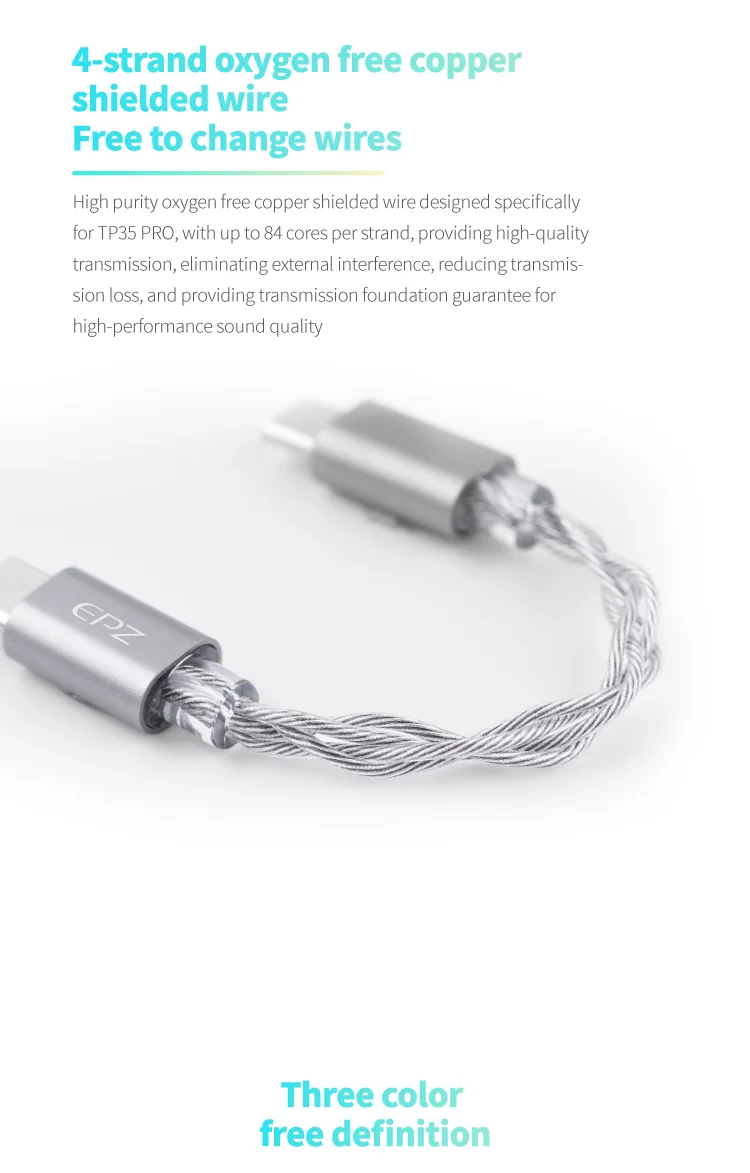

High-purity oxygen-free copper shielded wire can reduce interference and provide sound transparency and resolution. Replaceable cables can easily connect various devices, including standard Type-C to USB and optional lightning interface for Apple devices.


Instructions

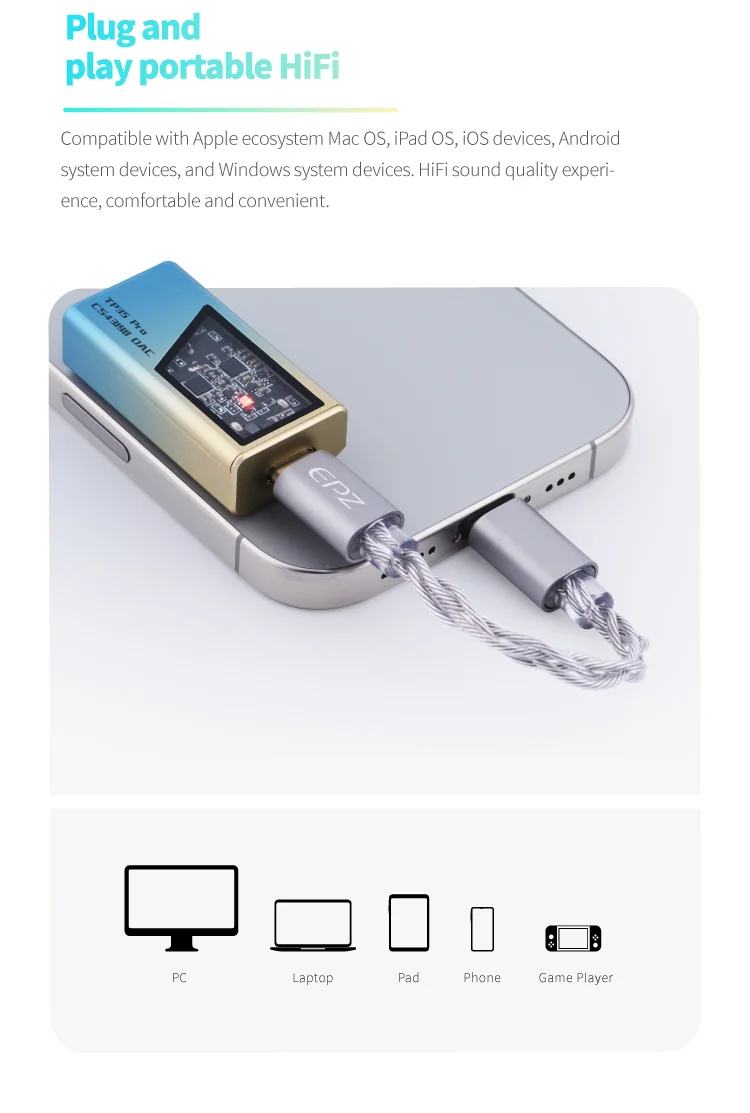

1. Use the included data cable to connect the mobile phone or other front-end device that supports OTG decoding. After the connection is successful, the TP35 indicator light will be on (red), indicating that the connection is normal. It is recommended that when you use TP35 to connect to the mobile phone for the first time, first turn down the volume of the mobile phone, and then adjust it to a volume that suits you to avoid excessive sound (causing explosion and damage to the ears) and it is recommended to use high bit rate or lossless sound source for a better listening experience.


2. Function key description


-TP35 DAC button volume adjustment function and mobile phone volume adjustment function are controlled independently


-DAC built-in volume has power-off memory function



3. High and low gain function mode switching in UAC mode(It has been upgraded to EQ adjustment, you can directly use the APP or web version to click)

·TP35 works in UAC2.0 mode by default after power on. UAC mode cannot be switched during operation.(It has been upgraded to EQ adjustment, you can directly use the APP or web version to click)

·When TP35 is disconnected (powered off), press and hold the "volume +" key first, then connect TP35 to the interface of the computer, mobile phone or game console (power on), wait until the indicator light flashes slowly and then release the button, TP35 will work in UAC1.0 mode.(It has been upgraded to EQ adjustment, you can directly use the APP or web version to click)


When TP35 is in use, press the +- keys at the same time to switch high and low level modes (gain mode)(It has been upgraded to EQ adjustment, you can directly use the APP or web version to click)



*LED display, volume level and output level mode (high and low gain) have power-off memory function (that is, it will save the previous high and low gain effects and the light conditions when the LED is not displayed)

TP35 pro specifications:

DAC chip: 43198x2

Decoding specifications: PCM: 32Bit/384KHZ DSD: Dop128/Native256

Connector: Type-c

SWitch: Support

Body material: Aluminum alloy sandblasting oxidation gray black

Wire: High-purity oxygen-free copper shielded wire

Output plug: 3.5mm, 4.4mm

Body: 43.1*21.7*12.1 mm

Cable: 132mm

Weight: 15-20g
