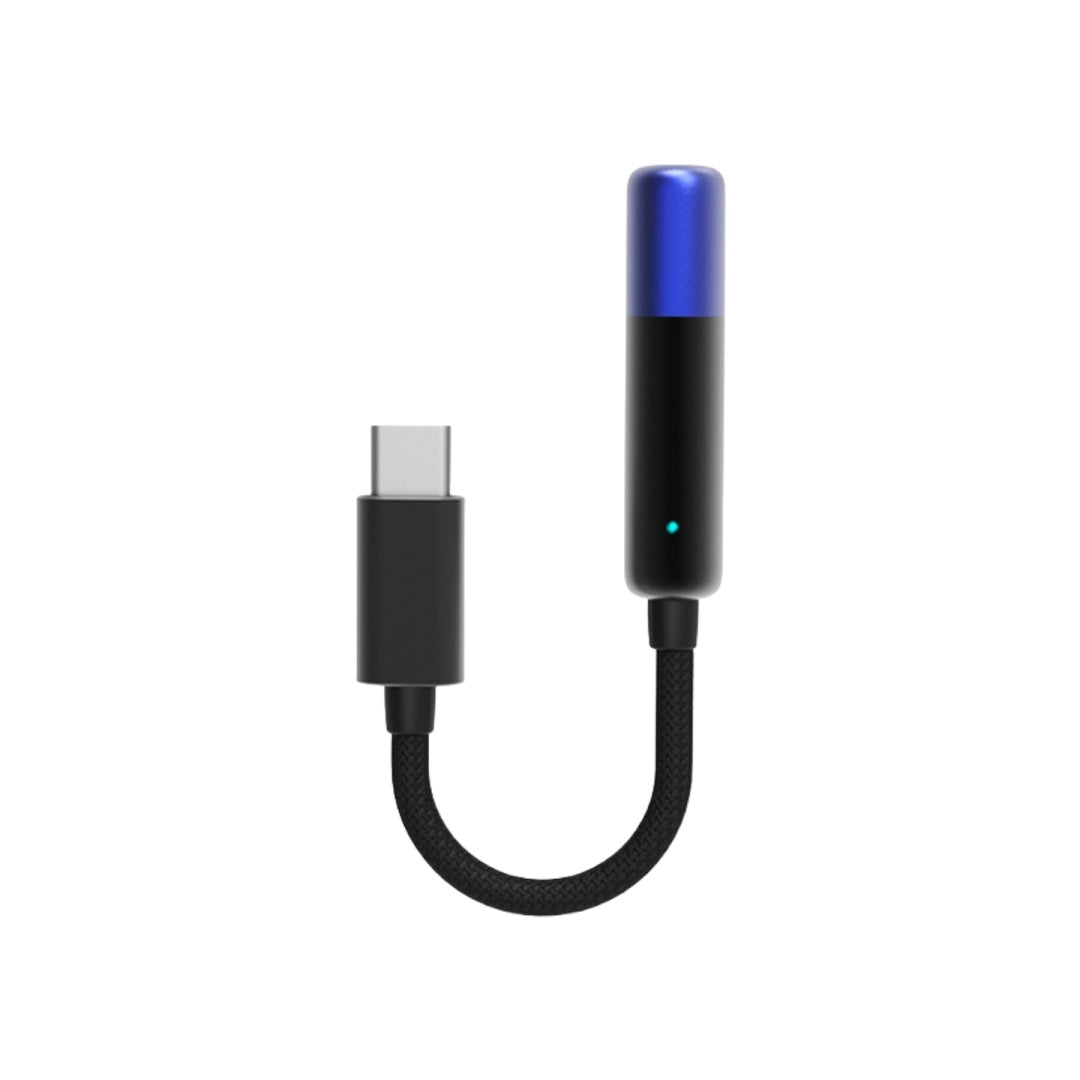

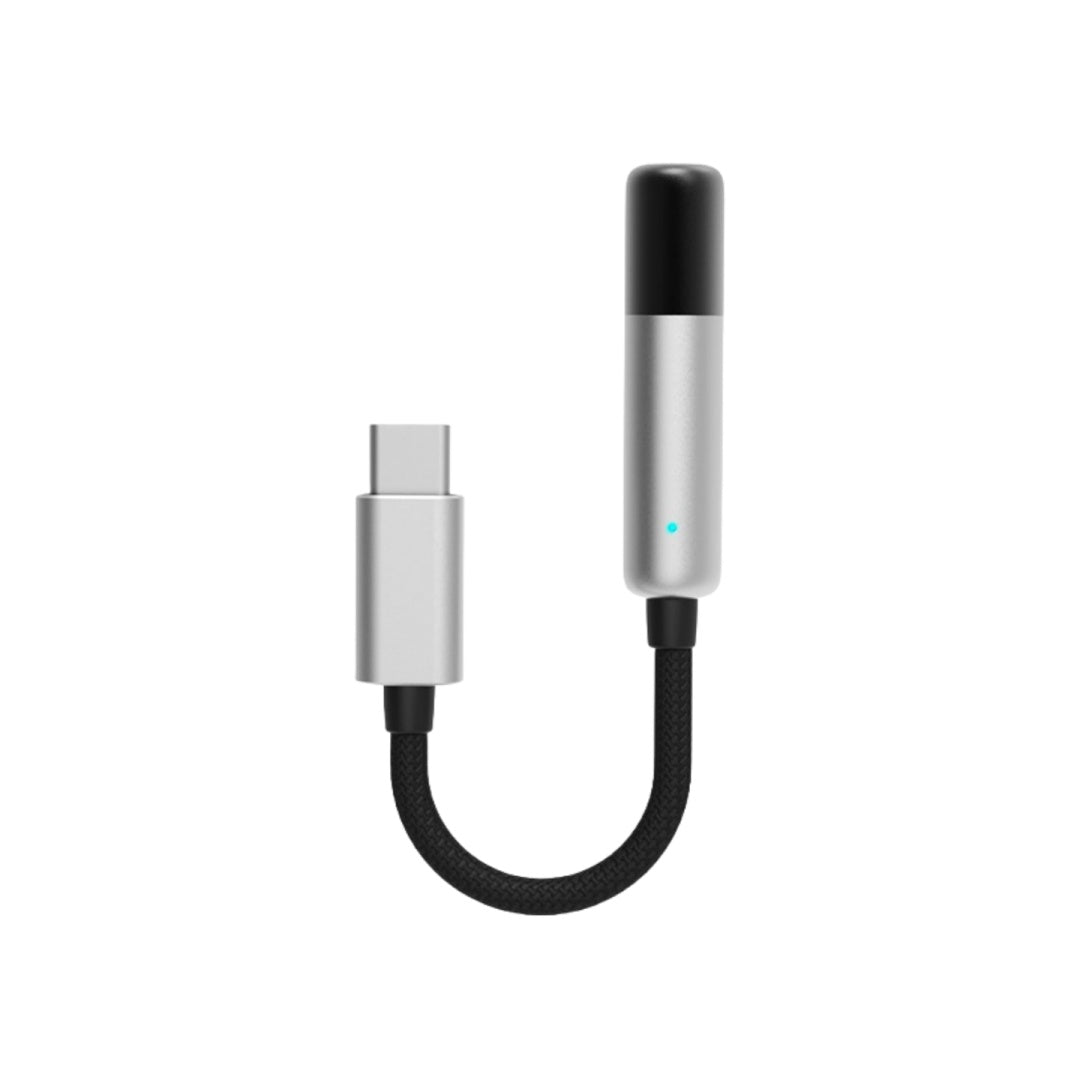

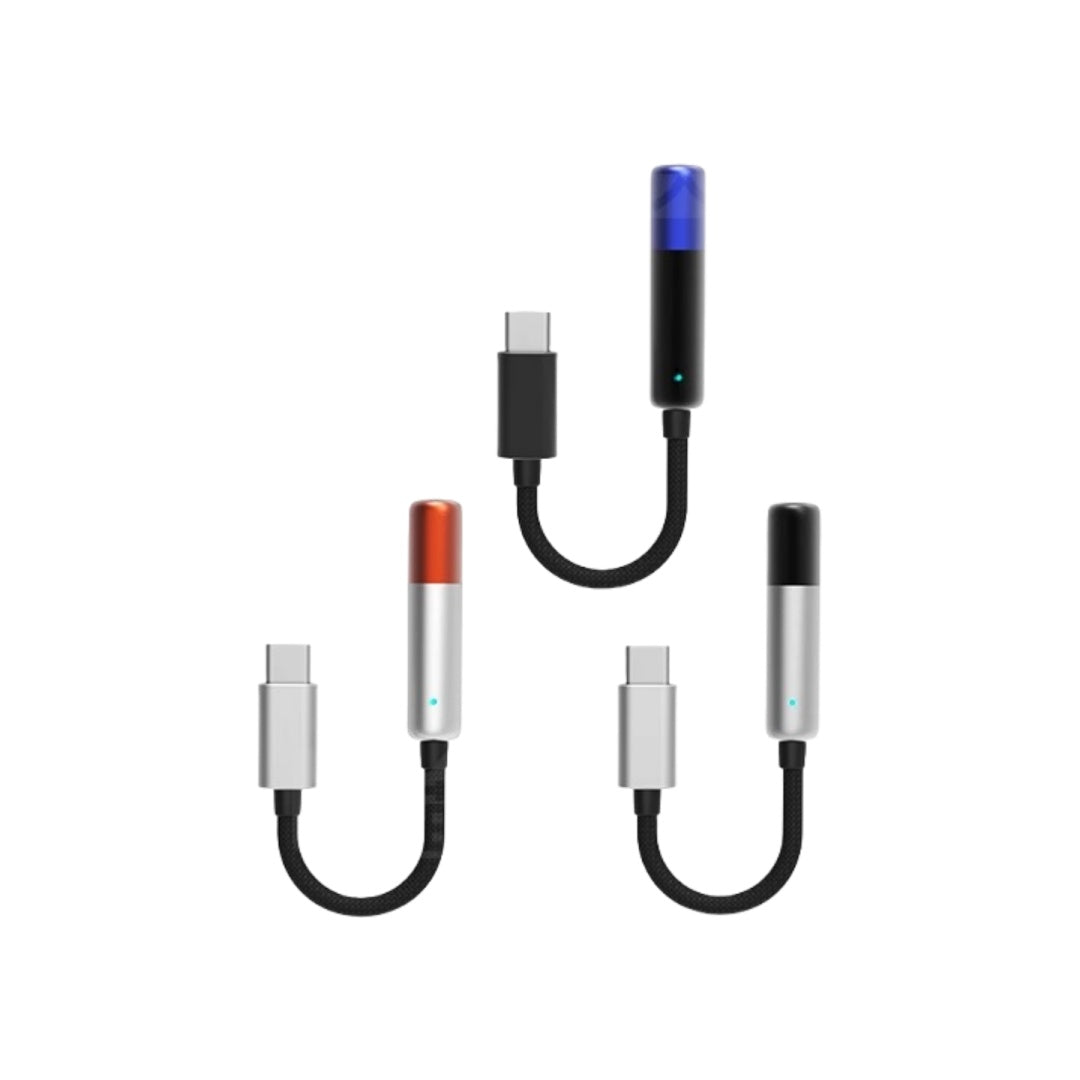

Shanling UA Mini USB -C DAC

The Shanling UA Mini USB-C DAC delivers high-fidelity audio with advanced components including the Savitech SA9312 USB chip and Cirrus Logic CS43131 DAC chip. Supporting PCM up to 384kHz/32bit and DSD64 to DSD256, it ensures pristine sound quality. Its powerful amplifier provides up to 260mW per channel with exceptionally low distortion and noise, featuring a 126dB signal-to-noise ratio and 0.0004% total harmonic distortion. The 3.5mm headphone output with 0.5Ω impedance guarantees clear, dynamic sound reproduction, making it ideal for audiophiles seeking superior portable DAC performance.

Shanling UA Mini USB -C DAC/AMP Specifications:
Weight: Approx. 8.4g
Dimensions: 42 x 10 mm (Main body) /128mm Total Length with Cable
Headphone Connector: 3.5mm
Data Connector: USB-C
USB Chip: Savitech SA9312
DAC Chip: Cirrus Logic CS43131
Amplifier: SGM8262-2
PCM Support: 44.1-384kHz/32bit
DSD Support: DSD64-DSD256
Output Power: (32Q THD+N<1%) L+R=205mW+205mW
Output Power: (16Q THD+N<1%) L+R = 260mW+260mW
SNR: 126dB (32Q Load / A-weighted)
DNR: 126dB (32Q Load / A-weighted) THD+N: 0.0004% (-3dB @ 32Q Load) Noise Floor: 1.4uV (A-weighted)
Frequency Response: =±0.2dB (20-20kHz)
Output Impedance: 0.5Q
